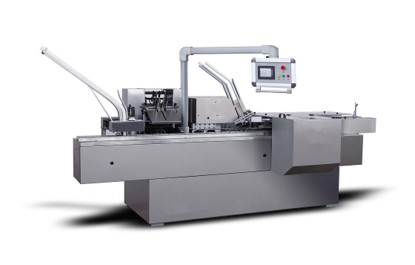

| Cartoning packing machine ,for put product into boxes automatically ,this cartoning machine can automatically pack single product and group products into boxes in high speed,like soaps, sachets,tissues,biscuits,bulk food ,bags, toothpaste,cans, bottles and so on.
Working process 1.Chain conveyor takes the product on the positon near the box, when sensor detecting the products, then the machine will pick up the box at the same time and open the box,and when the product and box are in line ,then the pusher will push the product into box 2. After the box will be sealing 3.PLC control the whole working process, precise and stable
Technical data Automatic box cartoning machine Speed 45-60 boxes /min Stable speed Box require papaer 250ā400g/m2 Size mm L(80-230) x W(70X130) x H(20-80) Pressed air Pressure ā„0.6MPa Air cost: 20m3/h
Power 220Vā380V 50Hz Main motor power 1.5kw
Machine size LXWXH 3600X1500X1800mm Main machine
Weight 1300kg
|
