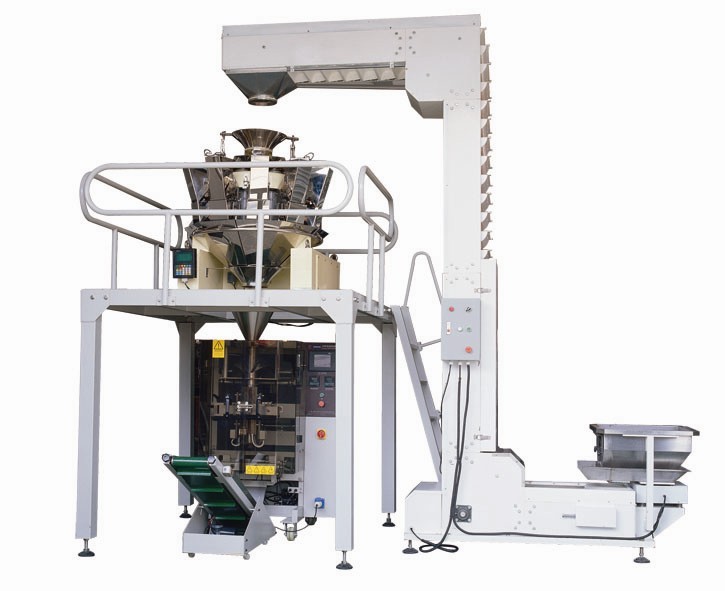

Combined parts:

1. main machine

2. 10 heads combination

3. Z type bucket elevato
4. Vibration feeder

5. Supporting platform

6. Finished product conveyor



Applicable scope

The constant weighing and packaging of various granular, lumpy, globular and flaky materials such as potato chips, rice crust, puffed food, walnut, American pistachios, nut with large shell, candy, melon seeds, frozen food (including sweet soup balls, stuff dumplings, etc.), jelly, waxberry, peanut, kernel, chocolate, leisure food, metal fittings, etc.



Metering parameters



Weighing range	10-1000g
Range of weighing accuracy	0.1-1.5g
Bag size	50-370x80-240 (mm)
Max. film width	500 (mm)
Packaging speed	50-70 bags/min
Power/current	5.5 kW/7A
Air supply pressure	0.36-0.6Mpa
Air consumption	0.4Nm3/min
Frequency/voltage	50Hz/60Hz/220V/380
External dimensions	1500x1580x2380
Unit weight	1200kg
Environmental working temperature	-30ºC--50ºC
Operating interface	5.7” LCD



Product features

1. This unit can realize whole process automatic from weighing and filling to bag marking and packaging.

2. This unit consists of PLC, servo driving system, pneumatic control system and man-machine interface touch screen to form its drive core, which can accomplish multiple functions such as counting, date printing, nitrogen charging (gas extract), finished product conveying, etc. during the weighing and packaging process.

3. The setting and modification of packaging parameters are carried out by the touch screen, it can save the packing parameters of 10 types of different products, which can be called out for use at any time without the need for resetting.

4. This unit can make pillow bag, gusseted bag, perforated bag and multiple continuous bags according to the customer's need.

5. Human designed brackets and platform for more convenient equipment maintenance.

6. Reasonable structure and matched device to make sure normally working under super low temperature.
