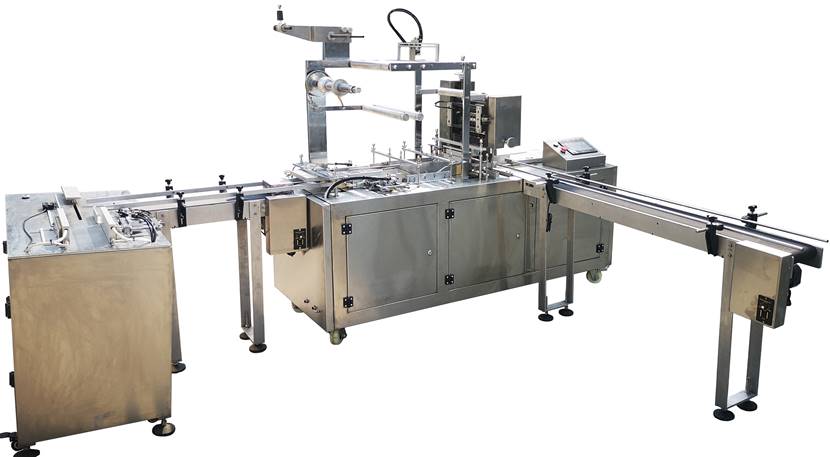

This machine is designed with combined advantage of domestic and international technology,can wrap many diffetent sizes of boxes with easy operation and short time changeover.It is the best choice for our customer to pack beautiful and many sizes of products.
Application:
Perfume boxes,health care product boxes,medicine boxes,food box,cosmetic boxes,VCD,play card box,cigarette boxes and so on.
Features
1.Speed is adjustable,easy to change different sizes, save changeover time
2.Not only can wrap single box, also can stack and wrap group boxes
3.All sizes are heating and be smooth,looks very beautiful, sealing area are flat and smooth and stable.very tight sealing
4.With our machine wrapped products, can be water proof ,and improve the product value and increase the expansion of brand.
5.PLC control with servo motor, reduce mechanical transmission ,low noise ,easy to maintain the machine
Technical data
Model: TCN-200D
speed: 10-30packs/min
Packing sizes: (L)40-180mm(W)30-100mm(H)20-100mm
Voltage: 220V 50－60Hz
Power: 4.5Kw
Machine sizes: 1900mm×700mm×1700mm(L×W×H)
Conveyor size :1500mm×140mm×800mm(L×W×H)
All sizes heating machine size: 1000×500×840mm(L×W×H)
Weight :600Kg
