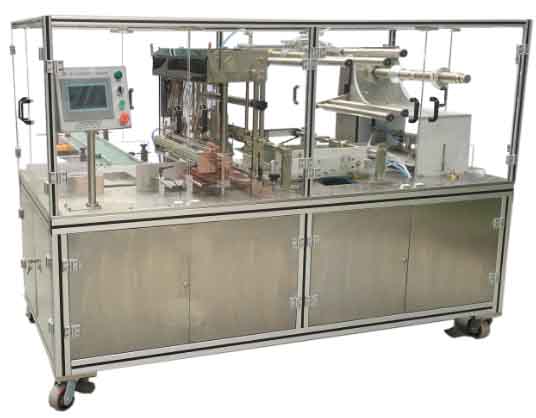

| This machine is mainly use for single soap and group soaps . single box and group boxes for the area of food,cosmetics, healthcare products, pharmaceuticals and so on.
It can connect production line automatically, and realize product conveying ,feeding ,film cutting ,wrapping ,folding ,sealing and discharge the products flly automatically.
1.Tight and water proof wrapping , this machine can improve the product classification for our customer,make good impaction into consumer . 2.This cellophane wrapping machine , the main structure is controlled by CAM box, then guarantee the durablity and quality of the machine,it can works more than 15 years without any problem 3.Digital display HMI showing packing speed, packing numbers, temperature,film feeding ,and so on ,all working data are visible, it is very human-friendly 4.With plastic -glass protection cover, to protect workers in a large sense, greatly avoid of operation risk for our customers 5.This machine can works with plain film and also printing film.
Technical data
| 1 |
production capacity |
15-35 boxes per min |
| 2 |
Voltage |
220-380V/50HZ |
| 3 |
Power |
4kw |
| 4 |
Overall dimension |
2180X1000X1560mm |
| 5 |
Conveyor size |
1600x350x850mm |
| 6 |
Weight |
800kg |
| 7 |
Working air pressure |
0.6-0.7Mpa |
Packing sizes
L: 70-400mm W: 30-240mm H:20-120mm
|
