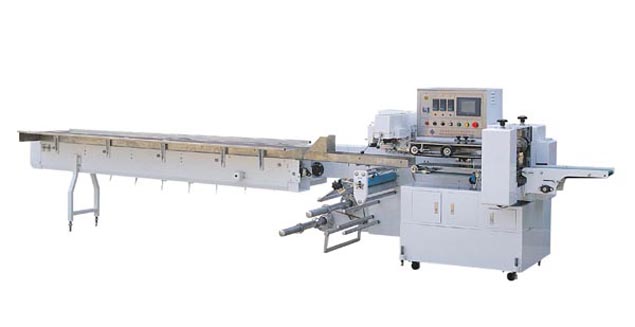

SN-450C AUTOMATIC PACKAGING MACHINE
1、Model and Functions
This machine is a horizontal type pillow-shaped packaging machine, which is capable of automatically completing such operations as bag making, covering, sealing and cutting by use of tubular film rollers. It is suited for application in packaging of a single piece or multiple pieces of objects of a shape cut and dried, in a continuous manner. As to meet the packaging requirements of different products, vertical seal could attain bottom edge seal or side edge seal.
2、Purpose and Characteristics
This machine is applicable for packaging operations of foodstuffs in small packages (such as instant noodles, bread, biscuits, etc.), daily use items (such as medicine, cosmetics, soap etc.) and industrial component parts. It has a wide scope of application, and can be adjusted for application in packaging of a variety of objects.
3、Specifications and Main Technical Parameters
1) Specifications
Model FC horizontal type automatic packaging machine is available in these specifications:
450/99; 450/99-2; 450/120; 450/150; 590/120; 590/150; 590/180; 590/120-180 models.
2) Main technical parameters (see Sheet 1)
Sheet of Main Technical Parameters of Model FC Packaging Machine
Sheet1
|
Model
Spec. |
SN-
450C/99 |
SN-
450C/99-2 |
SN-
450C/120 |
SN-
450C/150 |
SN-
590C/120 |
SN-
590C/150 |
SN-
590C/180 |
SN-590C
/210 |
|
Wrapping film’s
Maximum
Width
(mm) |
450 |
450 |
450 |
450 |
590 |
590 |
590 |
590 |
|
Packing
dimensions
L: length
(mm)
B: width
(mm)
H: height
(mm) |
L: 96~400
B: 10~150
H: 5~40 |
L: 45~210
B: 10~150
H: 5~40 |
L: 90~400
B: 10~150
H: 15~60 |
L: 90~400
B: 10~150
H: 30-~90 |
L: 90~400
B: 30~200
H: 15~60 |
L: 90~400
B: 30~200
H: 30~90 |
L: 90~400
B: 30~200
H: 40~120 |
L: 90~400
B: 30~200
H: 30~120 |
|
Production
Capacity
(pack/
minute) |
50~150 |
60~210 |
50~150 |
50~150 |
50~150 |
50~150 |
50~150 |
50~150 |
|
Dimensions (mm) |
5000×965×1750 |
5000×1105×1750 |
|
Wrapping film |
Suitable for
Compositive film paper for hot seal packaging/PE, OPP/PE, OPP/PP, PT/PE, AL/PE, OPP/PE etc..
Contractive film: PVC, OPP etc |
|
Total weight
(kg) |
1000 |
1000 |
1000 |
1000 |
1200 |
1200 |
1200 |
1200 |
|
Motor
Power |
One master motor at 1.1KW; one servo motor at 750 watts |
|
Electric heater power |
45V, 450W,
2 units
50V, 800W,
2 units |
45V, 450W,
2 units
50V, 600W,
2 units |
450V, 450W, 2 units
50V, 800W, 2 units |
|
Power source |
Single phase 220V, 50HZ |
|
Total power |
3.66KW |
4.46KW |
3.66KW |
3.66KW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
According customer’s need ,we can supply SMC680\SMC720\SMC820
