Special Recommendation:

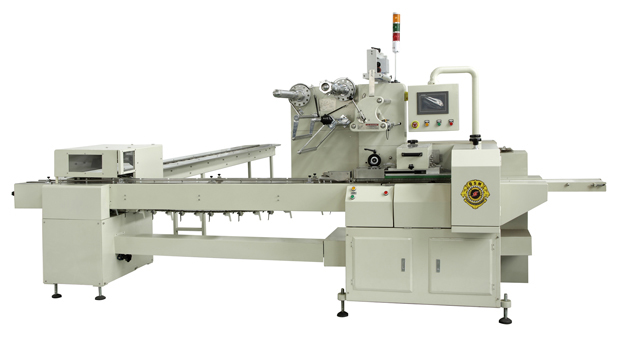

Biscuit packing machine SMW series is specially designed for single row biscuit
packaging without pallet, which realizing fast packaging of several pieces of biscuits
in single row. Because the pallets save the cost about 0.05 yuan per package, it can
save millions of costs for manufacturers for one year, which will bring a lot of benefits
to manufacturers.
Features:
1. Biscuit packaging machine NLW adopts servo motor with higher control precision
realize step-less control and dynamic adjusting during operation.
2. Large colored touch screen store, pick up, automatically adjust, track, find cutting
point, alarm, indicate barriers, accumulatively count packs, bag length and speed
automatic display, which can realize precise cut and seal.
3. With photo-cell detecting the color mark and
dual tracing system, this machine can effectively eliminate any packing error and avoid
materials waste.
4. New type vertical sealing design makes the seal at low temperature, which
effectively reduces the film burning and packing wastes.
5. Bag length and speed automatic display can realize precise cut and seal.
6. Greatly save the cost without pallet
7. Biscuit packing machine NLW can design cross production line and save space.
Technical Data
Capacity: 30 to 120 packs/minute
Product size limits:
Length: 80 to 240mm, Width: 30 to 90mm, Height: 30 to 80mm
Size of main machine (L x W): 4,600 x 1,260mm
Power consumption: 8.2kw, three-phase 380V, 50Hz
Net weight: 1,500kg
|
