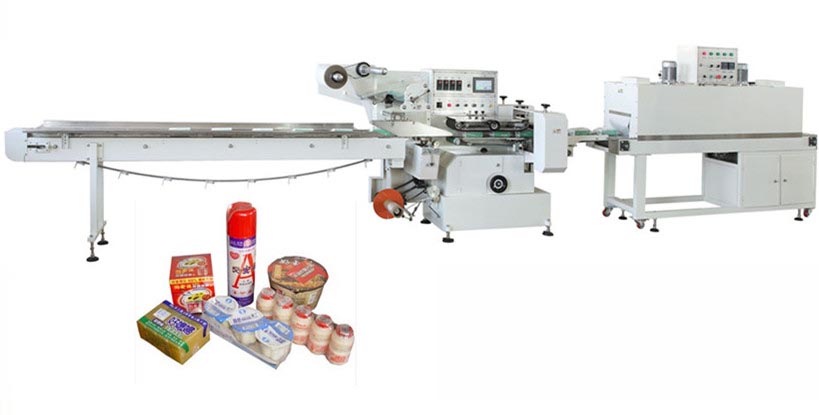

Shrink Packing Machine/Shrink Packaging Machine
Application:
Shrink Packaging Machine is suitable for packing bowls or barrels of convenience food, fruit milk, milk tea, fine dried noodle, slice buns, tableware (one-time disinfection tableware), several yoghurt cup, toothpaste, cosmetics, mosquito-repellent incense, batteries, and outer heat shrinkable packaging.
Special Recommendation:
Packaging machine NLB is specially designed for assembly line, large quantity of heat shrinkable packaging and design of automatic heat shrinkable packer. According to the specific condition of product, optional automatic feeding system can realize unattended operation. This machine adopts closed packaging and continuous operation, so it has high efficiency and product has a line seal after packing.
Features:
1. Packaging machine NLB adopts servo motor with higher control precision realize step-less control and dynamic adjusting during operation.
2. Large colored touch screen store, pick up, automatically adjust, track, find cutting point, alarm, indicate barriers, accumulatively count packs, bag length and speed automatic display, which can realize precise cut and seal.
3. With photo-cell detecting the color mark and dual-tracing system, this machine can effectively eliminate any packing error and avoid materials waste.
4. New type vertical sealing design makes the seal at low temperature, which effectively reduces the film burning and packing wastes.
5. Adjustable bag former and pitches enable the change of packing products more conveniently.
6. With timing belt transmission, this machine has appearance, lower noise and less shake.
7. Double temperature area in shrink stove can achieve automatic temperature control.
8. Efficient air circulation ensures the quality of contraction
9. Redundant film resection and recovery device.
Technical Data
| Model Spec. |
SN-450B/99 |
SN-450B/99-2 |
SN-450B/120 |
SN-450B/150 |
SN-590B/120 |
SN-590B/150 |
SN-590B/180 |
SN-590B/210 |
|
| Wrapping film’s |
450 |
450 |
450 |
450 |
590 |
590 |
590 |
590 |
| Maximum |
| Width(mm) |
| Packing dimensions |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| L:length(mm) |
L: 96~400 |
L: 45~210 |
L: 90~400 |
L: 90~400 |
L: 90~400 |
L: 90~400 |
L: 90~400 |
L: 90~400 |
| W:width(mm) |
W: 10~150 |
W: 10~150 |
W: 10~150 |
W: 10~150 |
W: 30~200 |
W: 30~200 |
W: 30~200 |
W: 30~200 |
| H:height(mm) |
H: 5~40 |
H: 5~40 |
H: 15~60 |
H: 30-~90 |
H: 15~60 |
H: 30~90 |
H: 40~120 |
H: 65~120 |
| Production |
50~150 |
60~210 |
50~150 |
50~150 |
50~150 |
50~150 |
50~150 |
50~150 |
| Capacity |
| (pack/minute) |
| Dimensions(mm) |
5000×965×1750 |
5000×1105×1750 |
| Wrapping film |
Suitable for Compositive film paper for hot seal packaging/PE, OPP/PE, OPP/PP, PT/PE, AL/PE, OPP/PE etc.. |
|
| Contractive film: PVC, OPP etc |
| Total weight(KG) |
1000 |
1200 | |
