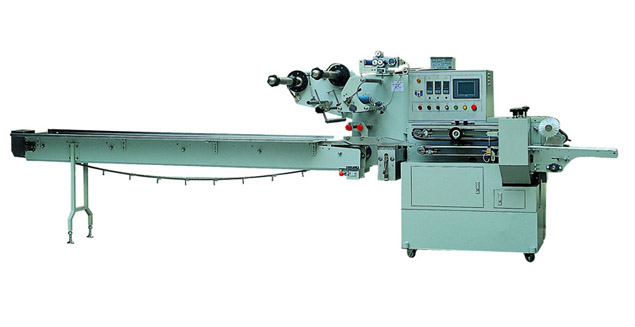

AUTO PACKAGING MACHINE 1、Model and Functions This machine is a horizontal type pillow-shaped packaging machine, which is capable of automatically completing such operations as bag making, covering, sealing and cutting by use of tubular film rollers. It is suited for application in packaging of a single piece or multiple pieces of objects of a shape cut and dried, in a continuous manner. As to meet the packaging requirements of different products, vertical seal could attain bottom edge seal or side edge seal. 2、Purpose and Characteristics This machine is applicable for packaging operations of foodstuffs in small packages (such as instant noodles, bread, biscuits, bottled yoghurt beverages etc.), daily use items (such as medicine, cosmetics, soap etc.) and industrial component parts. It has a wide scope of application, and can be adjusted for application in packaging of a variety of objects

Tehnical Data

Model   Spec.	SN-450/99	SN-450/99-2	SN-450/120	SN-450/150SN-	SN-590/120	SN-590/150	SN-590/180	SN-590/210
Wrapping film’s	450	450	450	450	590	590	590	590
Maximum
Width(mm)
Packing dimensions
L:length(mm)	L: 96~400	L: 45~210	L: 90~400	L: 90~400	L: 90~400	L: 90~400	L: 90~400	L: 90~400
W:width(mm)	W: 10~150	W: 10~150	W: 10~150	W: 10~150	W: 30~200	W: 30~200	W: 30~200	W: 30~200
H:height(mm)	H: 5~40	H: 5~40	H: 15~60	H: 30-~90	H: 15~60	H: 30~90	H: 40~120	H: 65~120
Production	50~150	60~210	50~150	50~150	50~150	50~150	50~150	50~150
Capacity
(pack/minute)
Dimensions(mm)	5000×965×1750				5000×1105×1750
Wrapping film	Suitable for Compositive film paper for hot seal packaging/PE, OPP/PE, OPP/PP, PT/PE, AL/PE, OPP/PE etc..
Total weight(KG)	1000				1200
